Climaver Neto Duct

Climaver Neto Duct

The CLIMAVER Neto air duct is a sound-absorbing, soundproofing, insulating, and fire-resistant air duct product that helps reduce noise from fans and air conditioning systems. This product also serves as a modern insulated duct system made from fiberglass and sound-absorbing fabric

  • CoreFiberglass
  • Finish:Aluminum foil

The CLIMAVER® duct is part of the product range the ISOVER® brand, a subsidiary of the Saint-Gobain Group, a leading global supplier of insulation and soundproofing materials. ISOVER® products are widely used in residential, commercial, maritime, industrial, and HVAC projects.
The CLIMAVER Neto duct is made high-quality insulating and soundproofing materials, meeting advanced technical standards. This insulated duct includes an outer aluminum foil layer, a fiberglass core, and an inner heat-resistant layer.

Maximum sound absorption and noise reduction Easy and quick installation: Easy to cut and shape; lightweight Maximum energy cost savings: Thanks to the ducts exceptional airtightness





Characteristics

Fire resistance: The CLIMAVER Neto duct has a flash point above 200°C, meeting fire safety standards and minimizing fire risks in ventilation systems.

High durability: The duct is robust and resistant to strong pressure and impacts, ensuring a stable and reliable ventilation system.

High flexibility: The duct can bend and twist, allowing for easy installation and airflow direction adjustments, while minimizing pressure loss in the system.

Long lifespan: Resistant to decay and corrosion in harsh environments, reducing maintenance and replacement costs.

Noise reduction: The CLIMAVER Neto duct effectively minimizes operational noise, creating a safer and more comfortable environment for work and living.

With these characteristics, the CLIMAVER Neto duct is an excellent choice for ventilation systems, particularly in construction and industrial projects that demand high insulation performance, safety, and durability.






Technical Specifications

Property

Symbol

Unit

 Quantity and Unit of Measurement

Standard
Thermal conductivity

T

[ºC]

10

20

40

60





EN 12667

EN 12939

λ

[W/(m.K)]

0.032

0.033

0.036

0.038




Sound absorption coefficient



Hz

125

250

500

1000

2000

4000

 EN 13403

Tested: EN ISO 11654

α

-

0.35

0.65

0.75

.085

0.9

0.9

αW

-

0.85

Sound reduction per meter length ∆L (DB/m)



Hz

125

250

500

1000

2000

4000

-

Cross-section  (mm)

200x200

4.83

11.49

14.04

16.73

18.12

18.12

300x400

2.82

6.7

8.19

9.76

10.57

10.57

400x700

1.9

4.51

5.51

6.57

7.12

7.12
It is calculated using the formula ∆L = 1.05 x αp1.4 x P/S for the fans energy with an airflow speed of 20,000m³/h, and a pressure loss of 15mm.w.g. (∆L is based on approximate calculations).
P: Perimeter of the duct and S: cross-sectional area of the duct.
Particle/Fiber Emission

-

-

Particles/fibers > 0.5μm: 0.006 μm /m³ < 60μm/m³

Particles/fibers > 5μm:0.003μm/m³ < 4.0μm/m³

EN13403
Antibacterial capability

-

-

 No signs of mold on the panel

EN13403
Water vapor resistance

-

m2.h.Pa/mg

>140

EN13403
Air tightness

-

-

Class D

EN13403
Pressure resistance

-

Pa

800

EN13403
Dimensional stability

-

%

Quantity and Unit of Measurement: <1

EN13403
CE Certified

-

-

 CE Certified, code MW-EN14303-T5-MV1

EN13403
Quality Managemen

-

-

ISOVER products comply with EN ISO 9001 and EN ISO 14001

EN ISO 9001 và EN ISO 14001

EN ISO 9001

EN ISO 14001

Applications

The CLIMAVER Neto air duct has numerous practical applications in air conditioning and ventilation systems for construction projects, such as:

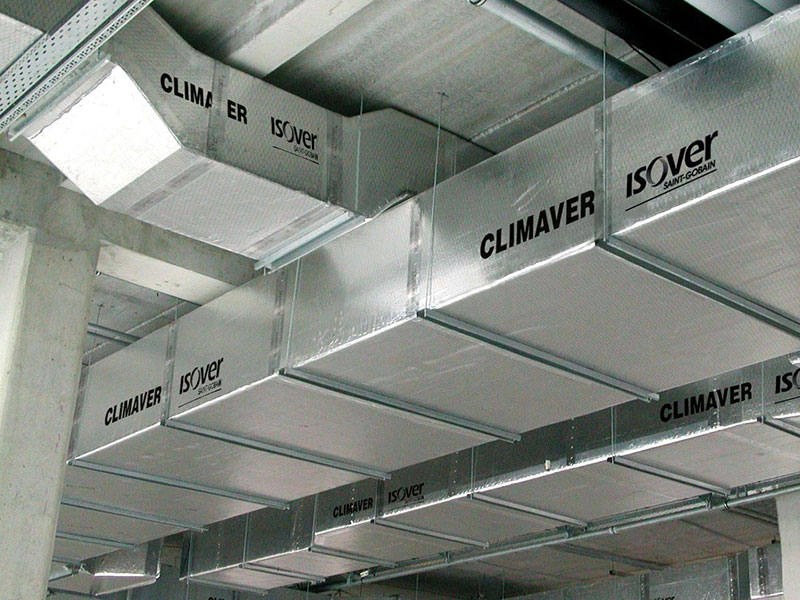

•    Ventilation systems for high-rise buildings, industrial zones, manufacturing plants, shopping malls, supermarkets, airports, hospitals, schools, railway stations, and more.
•    Air conditioning systems for specialized areas like laboratories, clean rooms, operating rooms, sterile rooms, and cold storage facilities.
•    Ventilation and exhaust systems for manufacturing plants, wastewater treatment plants, power plants, and other industrial facilities.

With its features of insulation, fire resistance, durability, and ease of installation, the CLIMAVER Neto air duct is widely used in ventilation and air conditioning systems in modern construction projects
